| OILESS
CHAINS |
-
- The luburucant impregnated into the porosity
of sintered metal bushings permit operation in low speed applications
where lubricantion is restricted, food processing equipment,
packing and textile machines etc.
We offere two types of SL-Series and NL-Series Oiless Chains
- even in applications that don't receive proper lubrication.
|

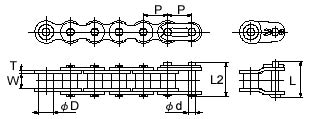

- SL-series Oiless Chains
- This chain is constructed a one -piece sintered
metal bushing.
(Bushing chains - no rollers).
|
 |
 |
Dimensions in Inches.
Chain
No. |
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L |
L2 |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| 40SL |
1/2 |
5/16 |
.312 |
.156 |
.746 |
.691 |
.060 |
.40 |
3300 |
| 50SL |
5/8 |
3/8 |
.400 |
.200 |
.906 |
.856 |
.080 |
.65 |
5200 |
| 60SL |
3/4 |
1/2 |
.469 |
.234 |
1.160 |
1.055 |
.094 |
.95 |
7400 |
| 80SL |
1 |
5/8 |
.625 |
.312 |
1.484 |
1.388 |
.125 |
1.60 |
13000 |

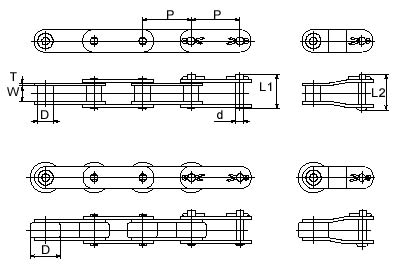

| Double pitch Oiless
Chains |
 |
 |
Dimensions in Inches.
Chain
No. |
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L |
L2 |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| A-2040SL |
1 |
5/16 |
.312 |
.156 |
.746 |
.691 |
.060 |
.28 |
3300 |
| C-2040SL |
1 |
5/16 |
.312 |
.156 |
.746 |
.691 |
.060 |
.34 |
3300 |
| C-2042SL |
1 |
5/16 |
.312 |
.156 |
.746 |
.691 |
.060 |
.54 |
3300 |
| A-2050SL |
1 1/4 |
3/8 |
.400 |
.200 |
.906 |
.856 |
.080 |
.46 |
5200 |
| C-2050SL |
1 1/4 |
3/8 |
.400 |
.200 |
.906 |
.856 |
.080 |
.56 |
5200 |
| C-2052SL |
1 1/4 |
3/8 |
.400 |
.200 |
.906 |
.856 |
.080 |
.85 |
5200 |
| A-2060SL |
1 1/2 |
1/2 |
.469 |
.234 |
1.160 |
1.055 |
094 |
.67 |
7400 |
| C-2060SL |
1 1/2 |
1/2 |
.469 |
.234 |
1.160 |
1.055 |
094 |
.83 |
7400 |
| C-2062SL |
1 1/2 |
1/2 |
.469 |
.234 |
1.160 |
1.055 |
094 |
1.23 |
7400 |
| A-2080SL |
2 |
5/8 |
.625 |
.312 |
1.484 |
1.388 |
.125 |
1.26 |
13000 |
| C-2080SL |
2 |
5/8 |
.625 |
.312 |
1.484 |
1.388 |
.125 |
1.40 |
13000 |
| C-2082SL |
2 |
5/8 |
.625 |
.312 |
1.484 |
1.388 |
.125 |
2.12 |
13000 |

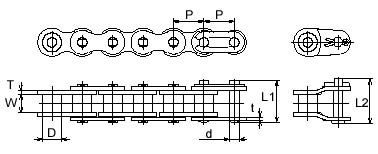

- NL-series Oiless Chains
- This chain is constructed sintered metal bushing
and chain roller combination for smooth engagement with sprocket.
|
 |
Dimensions in Inches.
Chain
No. |
Pitch
P |
Inner
Width
W |
Bushing
Dia.
D |
d |
L1 |
L2 |
Link
Plate Thickness |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| T |
t |
| 40NL |
1/2 |
5/16 |
.312 |
.156 |
.732 |
.823 |
.080 |
0.06 |
.46 |
4400 |
| 50NL |
5/8 |
3/8 |
.400 |
.200 |
.890 |
.966 |
.094 |
0.08 |
.76 |
7300 |
| 60NL |
3/4 |
1/2 |
.469 |
.234 |
1.118 |
1.276 |
.125 |
0.094 |
1.14 |
10000 |
| 80NL |
1 |
5/8 |
.625 |
.312 |
1.429 |
1.590 |
.157 |
0.125 |
1.93 |
17700 |

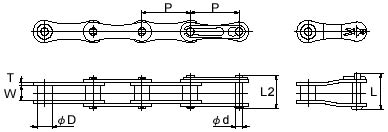

| Double pitch Oiless
Chains |
 |
Dimensions in Inches.
Chain
No. |
Pitch
P |
Inner
Width
W |
Bushing
Dia.
D |
d |
L |
L2 |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| C-2040NL |
1 |
5/16 |
.312 |
.156 |
.691 |
.746 |
.060 |
.34 |
3800 |
| C-2042NL |
1 |
5/16 |
.625 |
.156 |
.691 |
.746 |
.060 |
.53 |
3800 |
| C-2050NL |
1 1/4 |
3/8 |
.400 |
.200 |
.856 |
.906 |
.080 |
.56 |
6200 |
| C-2052NL |
1 1/4 |
3/8 |
.750 |
.200 |
.856 |
.906 |
.080 |
.84 |
6200 |
| C-2060NL |
1 1/2 |
1/2 |
.469 |
.234 |
1.181 |
1.285 |
.125 |
.82 |
9000 |
| C-2062NL |
1 1/2 |
1/2 |
.875 |
.234 |
1.181 |
1.285 |
.125 |
1.23 |
9000 |
| C-2080NL |
2 |
5/8 |
.625 |
.312 |
1.516 |
1.581 |
.156 |
1.40 |
15600 |
| C-2082NL |
2 |
5/8 |
1.125 |
.312 |
1.516 |
1.581 |
.156 |
2.10 |
15600 |
|
|
