LEAF CHAINS

Made of roller chain type links and riveted pins to utilize maximum strenght widths. Available in various lacings on both AL & BL series leaf chains.

Lacing combinations

Notes to Selection Do not use a chain with low safety factor.Otherwise,pin will turn,resulting in chain failure. Perform periodic lubrication.Even when safety factor is satisfactory,insufficient lubrication will result in pin rotation. Safety factor of chain is determined by the related regulations,or by this bulletin, whichever is greater.

Leaf Chain Operating Notes Lubricate leaf chain periodically to avoid rotation of pin and reduce wear for extended service life. Recommended oil:SAE30-SAE40 Lubrication intervals:Determined to keep lubricant left between pin and inner link plate. Lubrication method:Lubrication into space between link plates wen chin is loosend. Avoid use of chain in corrosive environment. Measure chain length periodically to check for wear and elongation. If elongation reaches its limit(3%),immediately replace chain.

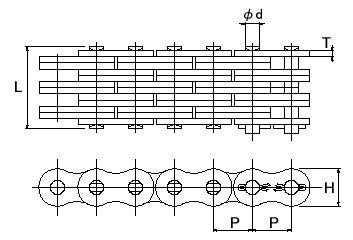

AL SERIES LEAF CHAINS AL series leaf chains - light duty,consist of link plates of the same contour and thickness as the link plates of ANSI standard roller chains having the same pitch.

Dimensions in Inches and Pounds.

Chain Number	Pitch P	Lacing	Over Rivets L	Pin Dia. d	Plate Heiht H	Plate Thickness T	Tensile Strength Ave.(lbs.)	Approx. Weight (lbs./ft)
AL 422	1/2	2 X 2	.33	.156	.410	.060	4000	.25
AL 444	1/2	4 X 4	.58	.156	.410	.060	8000	.48
AL 466	1/2	6 X 6	.83	.156	.410	.060	12000	.73
AL 522	5/8	2 X 2	.41	.200	.510	.080	6600	.41
AL 544	5/8	4 X 4	.76	.200	.510	.080	13200	.80
AL 566	5/8	6 X 6	1.08	.200	.510	.080	19800	1.20
AL 644	3/4	4 X 4	.88	.234	.565	.094	18000	1.01
AL 666	3/4	6 X 6	1.27	.234	.565	.094	27000	1.50
AL 844	1	4 X 4	1.16	.312	.750	.125	32000	1.88
AL 866	1	6 X 6	1.61	.312	.750	.125	48000	2.79
AL 1044	1 1/4	4 X 4	1.43	.375	1.000	.156	46000	2.59
AL 1066	1 1/4	6 X 6	2.05	.375	1.000	.156	69000	4.97
AL 1244	1 1/2	4 X 4	1.68	.437	1.200	.187	64000	4.62
AL 1266	1 1/2	6 X 6	2.46	.437	1.200	.187	96000	5.83
AL 1444	1 3/4	4 X 4	2.02	.500	1.420	.218	82000	4.94
AL 1466	1 3/4	6 X 6	2.93	.500	1.420	.218	123000	7.38
AL 1644	2	4 X 4	2.29	.562	1.620	.250	104000	7.34
AL 1666	2	6 X 6	3.33	.562	1.620	.250	156000	10.91

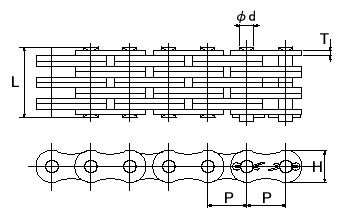

BL SERIES LEAF CHAINS BL series leaf chains - heavy duty,consist of link plates with next larger size pitch chain of ANSI standard roller chains.

Dimensions in Inches and Pounds.

Chain Number	Pitch P	Lacing	Over Rivets L	Pin Dia. d	Plate Heiht H	Plate Thickness T	Tensile Strength Ave.(lbs.)	Approx. Weight (lbs./ft)
BL 423	1/2	2 x 3	.50	.200	.475	.080	6,100	.48
BL 434	1/2	3 x 4	.67	.200	.475	.080	9,200	.64
BL 446	1/2	4 x 6	.92	.200	.475	.080	12,200	.93
BL 523	5/8	2 x 3	.58	.234	.585	.094	9,000	.74
BL 534	5/8	3 x 4	.78	.234	.585	.094	13,600	1.03
BL 546	5/8	4 x 6	1.07	.234	.585	.094	18,000	1.46
BL 623	3/4	2 x 3	.76	.312	.700	.125	13,600	1.15
BL 634	3/4	3 x 4	1.02	.312	.700	.125	20,400	1.60
BL 646	3/4	4 x 6	1.41	.312	.700	.125	27,200	2.30
BL 823	1	2 x 3	.94	.375	.950	.156	23,000	1.91
BL 834	1	3 x 4	1.26	.375	.950	.156	34,800	2.66
BL 846	1	4 x 6	1.76	.375	.950	.156	46,000	3.78
BL 1023	1 1/4	2 x 3	1.12	.437	1.160	.187	32,000	2.95
BL 1034	1 1/4	3 x 4	1.60	.437	1.160	.187	50,000	4.07
BL 1046	1 1/4	4 x 6	2.08	.437	1.160	.187	64,000	5.79
BL 1223	1 1/2	2 x 3	1.27	.500	1.400	.218	41,000	4.07
BL 1234	1 1/2	3 x 4	1.73	.500	1.400	.218	66,500	5.65
BL 1246	1 1/2	4 x 6	2.42	.500	1.400	.218	82,000	7.99
BL 1423	1 3/4	2 x 3	1.46	.562	1.620	.250	52,000	5.40
BL 1434	1 3/4	3 x 4	1.98	.562	1.620	.250	85,500	7.49
BL 1446	1 3/4	4 x 6	2.76	.562	1.620	.250	104,000	10.77
BL 1623	2	2 x 3	1.68	.687	1.840	.281	78,000	6.57
BL 1634	2	3 x 4	2.28	.687	1.840	.281	118,500	9.13
BL 1646	2	4 x 6	3.17	.687	1.840	.281	156,000	12.99
