HOLLOW PIN CHAINS

Because of the hollow-pin design,many types of crossrods, pins and custom attachment may be inserted at any link without disassembling the chain. Available in both single and double pitch types.

Dimensions in Inches and Pounds.

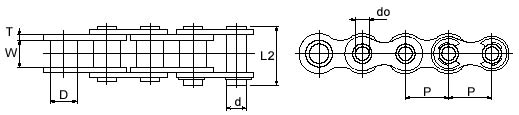

ANSI Chain Number	Chain Pitch P	Inner Width W	Bushing Dia. D	d	L2	Hole Dia. do	Link Plate Thickness T	Approx. Weight (lbs./ft)	Tensile Strength Ave.(lbs.)
40HP	1/2	5/16	5/16	.224	.690	.157	.060	.36	2,420
50HP	5/8	3/8	.400	.284	.855	.202	.080	.58	4,400
60HP	3/4	1/2	15/32	.330	1.055	.236	.094	.85	5,940
80HP	1	5/8	5/8	.448	1.341	.316	.126	1.61	10,803

Dimensions in Inches and Pounds.

ANSI Chain Number	Chain Pitch P	Inner Width W	Bushing Dia. D	d	L2	Hole Dia. do	Link Plate Thickness T	Approx. Weight (lbs./ft)	Tensile Strength Ave.(lbs.)
2040HP	1	5/16	5/16	.224	.690	.157	.060	.31	2,420
2050HP	1 1/4	3/8	.400	.284	.855	.202	.080	.50	4,400
2060HP	1 1/2	1/2	15/32	.330	1.055	.236	.094	.93	5,940
2080HP	2	5/8	5/8	.448	1.341	.316	.126	1.21	10,803
2042HP	1	5/16	5/8	.224	.690	.157	.060	0.55	2,420
2052HP	1 1/4	3/8	3/4	.284	.855	.202	.080	0.81	4,400
2062HP	1 1/2	1/2	5/8	.330	1.055	.236	.094	1.38	5,940
2082HP	2	5/8	1 1/8	.448	1.341	.316	.126	1.88	10,803
