| AGRICULTURAL
CHAINS |
-

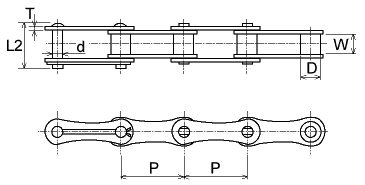

- S-series steel chains are designed to replace
steel/malleable chains when greater wear resistance and strength
are required.They are characterizes by the figure 8 contour
linkplates.
A wide range of attachments are available.
|
 |
Dimensions in Inches and Pounds.
Chain
Number |
Chain
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L2 |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
Chain
Number |
| S 35 |
1.15 |
0.625 |
0.45 |
.175 |
1.080 |
0.059 |
0.51 |
1,980 |
S 35 |
| S 42 |
1.375 |
0.750 |
0.562 |
.275 |
1.410 |
0.098 |
1.08 |
6,600 |
S 42 |
| S 52 |
1.50 |
0.875 |
0.60 |
.225 |
1.540 |
0.095 |
1.05 |
4,400 |
S 52 |
| S 55 |
1.63 |
0.875 |
0.70 |
.225 |
1.540 |
0.098 |
1.11 |
4,400 |
S 55 |
| S 45 |
1.63 |
0.875 |
0.60 |
.225 |
1.540 |
0.098 |
0.98 |
4,400 |
S 45 |
| S 62 |
1.65 |
1.000 |
0.75 |
.225 |
1.610 |
0.098 |
1.26 |
6,380 |
S 62 |
-

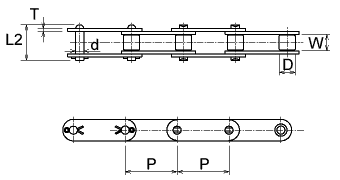

- CA-series steel chains have greater wear life
and higher strength than S-series steel chains.They are characterizes
by oval contour linkplates.
A wide range of attachments are available.
|
 |
Dimensions in Inches and Pounds.
Chain
Number |
Chain
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L2 |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
Chain
Number |
| CA 550 |
1.630 |
.795 |
.661 |
.281 |
1.500 |
.106 |
1.31 |
11,200 |
CA 550 |
| CA 620 |
1.654 |
.984 |
.696 |
.281 |
1.780 |
.125 |
1.60 |
11,200 |
CA 620 |
|
|
