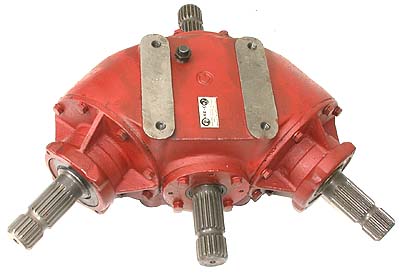

Part No. B8514 - 1:1 ratio
|
APPLICATIONS
|
SPECIFICATIONS
|
|
Multi Head -
Rotary Cutters
|
INPUT
SHAFT:
OUTPUT SHAFT: |
1
3/4" x 20 spline
1 3/4" x 20 spline |
|
|
SPARE
PARTS
|
|
Ref
|
Part No.
|
Description
|
|
1
|
B1183
|
Through Shaft
OLD TYPE
1 3/4" x 20 spline x 1 3/8" x 6 spline
|
|
B4352
|
Through Shaft LATE
TYPE
1 3/4" x 20 spline x 1 3/4" x 20 spline |
|
2
|
B6673
|
Input Seal
|
|
3
|
B6918
|
Input Cap
|
|
4
|
B65
|
Cup Bearing
|
|
5
|
B91
|
Output Bearing
Cone (5 req)
|
|
6
|
B90
|
Output Bearing
Cup (5 req)
|
|
7
|
B6675
|
Shim gasket
(use qty as req.)
|
|
8
|
B7389
|
Circlip (circlip)
|
|
9
|
B97
|
Spacer
|
|
10
|
B1186
|
Gear 16 tooth
(3 req)
|
|
11
|
B350
|
Wing Shaft
Seal (2 req)
|
|
12
|
B2955
B6673
|
Rear Seal OLD
TYPE 1 3/8" x 6 spline
Rear Seal 1 3/4" x 20 spline
|
|
13
|
B778
B4349
|
Wing Shaft
OLD TYPE 1 3/8" x 6 spline
Wing Shaft 1 3/4" x 20 spline
|
|
14
|
B779
|
Output Cap
|
|
|
|
