Specials
|
|
| |
|

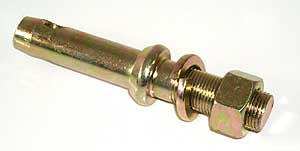

Implement Mounting Pins
ONLY BARE-Co PROVIDES:
- Cold forged pins to 1 1/8"
(28.6mm) dia for consistent grain flow, maximum strength and
superior surface finish.
(Our competitors do not have the capability to cold form pins
from 28.6mm dia. Wire)

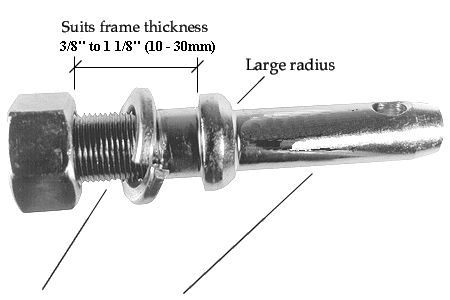

- Large radius at fracture point
(difficult to achieve in cold forging).
- Guaranteed base material to
min. specifications S1040 carbon steel.
|
FORGET ABOUT DRAWINGS!
JUST DETERMINE IMPLEMENT HOLE
DIA. AND TRACTOR CATEGORY
- All pins correct length to
accept stay bars or next linkage category bush upgrade.
- Various length stepped shoulders
replaced by straight shank to increase strength and reduce your
inventory. Stepped types available for 40 year old Ferguson
tiller and mowers.
- Only BARE-Co have invested
in special thin wall nuts, to provide clearance for straight
shank design on plough cross shafts etc.
|
|
SHOULDER/SHANK
DIA (IMPLEMENT HOLE DIA)
|
TRACTOR LINKAGE CATEGORY (PIN
DIA)
|
PART No.
|
COMMON APPLICATIONS
|
|
3/4" UNF (19mm)
|
CAT 1 = 22mm
|
B198
|
JARRETT - HOWARD - FARMRITE
|
|
CAT 2 = 28.6mm
|
B197
|
|
7/8" UNF (22mm)
|
CAT 1 = 22mm
|
B200
|
MOST POPULAR SIZE
APPLICATIONS TOO NUMEROUS TO LIST
|
|
CAT 2 = 28.6mm
|
B202
|
|
CAT 3 = 36.5mm
|
B2520
|
|
1" SAE (25.4mm)
14TPI
|
CAT 1 = 22mm
|
B101
|
HOWARD - BONEL - NAPIER - ANVIL
|
|
CAT 2 = 28.6mm
|
B102
|
|
CAT 3 = 36.5mm
|
B2521
|
|
1 1/8" UNF (28.6mm)
|
CAT 1 = 22mm
|
B201
|
MCKAY - PORT - M.F.
REPLACES ALL 11/8" SHOULDER PINS
|
|
CAT 2 = 28.6mm
|
B203
|
|
CAT 3 = 36.5mm
|
B2522
|
|
|
