Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B121
|
9N5182A
1826363
|
Drawbar Cat. 1 7/8" Pins
x 660mm
|
Dexta-Super Dexta-2000-3000-2600-3600-2610-3610
|
|
B6121
|
201834
1811489
|
Short Cat. 1 Draw Bar (550mm)
|
Suits Small Japanese Applications
|
|
B124
|
|
Drawbar Cat. 2 1-1/8" Pins
x 760mm
|
Major-Super Major-4000-5000-7000-4100-4600
5600-6600-6700-7600-7700-3910-4110-4610-6610
6710-7610-7710
|
|
B2722
|
|
Drawbar Cat. 2 = Extra Long
(760mm)
|
Extra Long Drawbar to suit larger
tractors with swing drawbar mounts
|
|
2
|
B500
|
|
Cat 1 Lower Link
Fixed Cat 1 Ball Ends
|
Thick
12mm
|
"A"
813mm
|
Dexta - Super Dexta
|
|
B501
|
Thick
16mm
|
"A"
813mm
|
2000-3000
(with Cat 1 linkage)
(Cat 1 7/8" fixed balls)
|
|
B486
|
Non Original Cat 2 Link (M.F.
type) (removable ball)
|
Thick
16mm
|
"A"
890mm
|
|
4000-4100-4600-4610
Confirm length
|
|
|
B147
|
|
Alternative H/D M.F. Cat 2
Link
(must fit pair)
|
Thick
18mm
|
"A"
968mm
|
|
Alternative H/D. Cat 2 Link
Must Fit Pair due to length
|
|
|

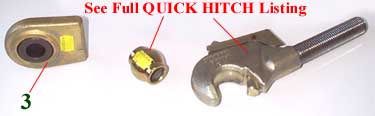

3
|
B652
|
|
Precision Cat 2 - weld on end
|
Universal
|
|
4
|
B56
|
E1ADDN995233
1718883
|
Ball Cat 1 (7/8") flat sides
|
All Models with Removable Lower
Link Balls
|
|
B55
|
C5NN557B
1822686
|
Ball Cat 2 (1-1/8") flat
sides
|
|
B57
|
C5NN557A
1801634
|
Ball Cat 2 (1-1/8") round
|
|
5
|
B127
|
C5NNN557B
1814226
|
Clip (ball retaining)
|
|
6
|
B5142
|
|
Dual Cat 1-2 ball and clip
|
|
7
|
B1700
|
NCA563C
1801640
|
Tapered Lower Link
Mount Pin Cat 1 (heat treated)
|
2000-3000-2600-3600
fits L.H. side only with diff
lock. Both Sides without diff lock
(Short Pin)
|
|
8
|
B1085
|
C5NN595B
1801675
|
Eye Bolt Assembly
|
Dexta-Super Dexta-2000-3000-2600-3600
2310-2610
When fitted with Cat 1 linkage
|
|
9
|
B1853
|
957E596
1801676
|
Anchor Bracket
|
|
10
|
B67
|
C7NN591A
1822159
|
Check Chain
|
|
11
|
B5137
|
C5NNA945C
|
Clevis and Pin Set
|
|
12
|
B1795
|
957E566
1717225
|
Knuckle
|
Dexta- Super Dexta-2000-3000-4000-2600-3600
4600-4100-2310-2610-2910-3910-4110-4610
|
|
13
|
B1640
|
E27N995282
1718905
|
Knuckle Pin 5/8" dia
|
|
14
|
B2387
|
C5NN564B
1801642
|
Yoke Rod
|
2000-2600
up to Nov 1978
|
|
15
|
B2388
|
C5NNB863A
1802071
|
Yoke Rod
380mm x 3/4" UNC
|
Dexta-Super Dexta-2000-3000-4000-2600-3600
(4600-4100-3910-4610-4110
with Cat 1 linkage)
|
|
16
|
B389
|
957E585
|
Fork
|
3/4" x 260mm
|
Dexta- Super Dexta
|
|
B392
|
C5NN585C
1801668
|
3/4" x 360mm
|
2000-3000-2600-3600-2310-2610
|
|
B3615
|
C5NN585B
1801667
|
3/4" x 500mm
|
4000 (3900-4600-4100-3910-4610-4110
with Cat 1 linkage)
|
|
B7070
|
E0NN585CA
3924898
|
13/16" x 510mm
|
3900-4600-4100-3910-4610-4110
with Cat 2 linkage
|
|
B2453
|
D2NNA935A
1831205
|
1-1/4" x 450mm
|
5000-5600-6600-6700-7000-7600-7700
with 915mm links
|
