Steering
MF135 - MF148-MF230-240-250
NOTE: Parts shown are BARE-Co parts - original part numbers
are shown for reference only.
MF135 from 140128 (no radius rods) - MF148-MF230-240-250
|

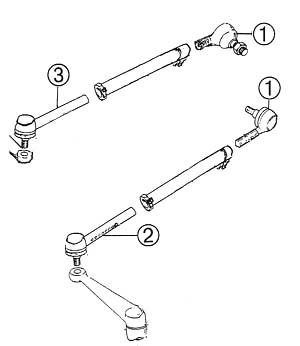

MANUAL STEERING
|
|
|
MANUAL STEERING
|
|
|
Ref
|
Part No.
|
Replaces
|
Description
|
|
1
|
B1851
|
826752M92
|
Rear end LH/RH
|
|
2
|
B3781
|
1860408M2
|
L.H. Front
|
|
3
|
B3780
|
1860412M2
|
R.H. Front
|
|
|

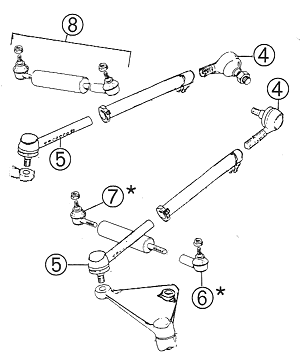

POWER STEERING
|
|
|
POWER STEERING
|
|
|
Ref.
|
Part No.
|
Replaces
|
Description
|
|
4
|
B1851
|
826752M92
|
Rear end LH/RH
|
|
5
|
B282
|
1692144M1
|
Front end LH/RH
|
|
6*
|
B6805
|
1851618M2
|
*Cylinder
end
(female thread)
|
|
7*
|
B6806
|
1851617M2
|
*Cylinder
end
(male thread)
|
|
8
|
B8570
|
|
L.H. side Cylinder assembly
|
|
B8571
|
|
R.H. side Cylinder assembly
|
|
* Suit
cylinders with replaceable ends only.
Refer to Power Steering page for
ends for BARE-Co cylinders.
|
|
|
|
