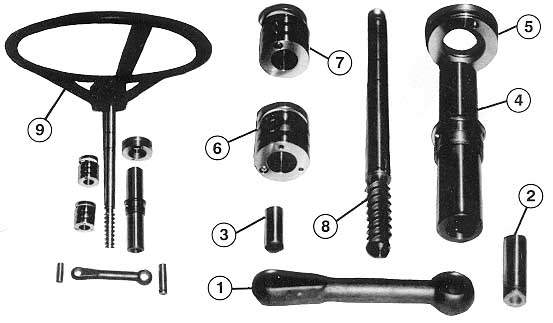

Power
Assisted Steering Column
NOTE: Parts shown are BARE-Co parts - original part
numbers are shown for reference only.
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B7629
|
L35639
(T25324)
|
LINK
|
1020 - 1120 - 2020 - 2120 - 3120
- 1030
1130 - 1630 - 1830 - 2030 - 2130 - 3130
940 - 1040 - 1140 - 1640 - 1840 - 2040
2040S - 2140 - 2150 - 2255 - 2240
|
|
2
|
B7630
|
T21722
|
LINK PIN (Lower)
|
|
3
|
B7628
|
T21655
|
LINK PIN (Upper)
|
|
4
|
B7627
|
T25323
|
WORM SLEEVE
|
|
5
|
B7626
|
T25325
|
PISTON
|
|
6
|
B7624
|
AL26311
(AT25490)
(AR52763)
|
LOWER SLEEVE ASSEMBLY
|
|
7
|
B7623
|
AL26312
(AT28055)
AR52764)
|
UPPER SLEEVE ASSEMBLY
|
|
8
|
B7625
|
L29199
|
WORM SHAFT
(350mm long)
* Very early models may require
following parts when fitting:
1020 - 1120 - 1830 (less Cab) - 2030
- 2130
up to 110142
2020 - 2120
up to 089328
|
*1020 - *1120
- *2020 - *2120
1030 - 1130 - 1630 (1830
less Cab)
2030 - 2130 - 940 - 1040 - 1140 - 1640
1840 - 2040 - 2040S - 2150 - 2255 - 2240
*NOTE
Very early models (marked*) may require
following parts when fitting B7625 (current sub) shaft:
T13555 - L29197 - R35226
|
|
9
|
See:
Steering Wheel page
|
|
|
