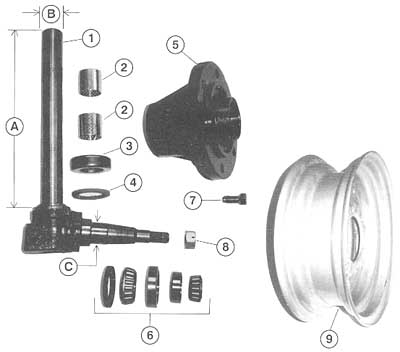

Front
Axle, Hub, Wheel - LIGHT DUTY
NOTE: Parts shown are BARE-Co parts - original part
numbers are shown for reference only.
LIGHT DUTY
axle models only
IDENTIFICATION: Round Hub Cap, NO Dust Shield on Stub Axle,
Keyed Top Arm
ALL: 940
- 1020 - 1030 - 1040
OPTIONAL FOR 1120 - 1130
- 1140 - 1630 - 2020 - 2120 - 1550 - 1750 - 1850 - 1950 - 2150 - 2250
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
|
1
|
B7668
|
AR58606 (AR49589 - AT23636)
|
Standard Clearance A =
300mm B = 35mm C = 35mm
|
|
B7683
|
AR58607 (AR49590)
|
High Clearance A = 388mm
B = 35mm C = 35mm
|
|
2
|
B5470
|
T21539
|
Bush (35mm I.D.)
|
|
3
|
B5471
|
JD8407
|
Thrust Bearing (35mm I.D.)
|
|
4
|
B5478
|
M2282T
|
Lower Seal
|
|
5
|
B7672
|
R47076
|
Hub (Round Cap Type)
|
|
6
|
B5472
|
x
|
Wheel Bearing Set (1 wheel)
|
|
7
|
B5477
|
JD21
|
Wheel Stud 9/16" (screw-in
type)
|
|
8
|
B3774
|
14H902
|
Castellated Nut 3/4"
|
|
9
|
B6807
|
AL28212 (AR52506)
|
Wheel to suit 600 x
16" tire
|
|
B6808
|
JD3039
|
Wheel to suit 750 x
16" tire
|
|
|
