Specials
|
|
| |
|
Hydraulic
Top Links
PART No B8113
|
B8111 CAT
2 (1" DIA) BALL BOTH ENDS
Includes Anti-Creep Valve
Adjustment Range 620mm to 890mm
cyl bore dia 63mm
piston rod dia 35mm
|
B8112 CAT
3 (1 1/4" DIA) BALL BOTH ENDS
Includes Anti-Creep Valve
Adjustment Range 680mm to 890mm
cyl bore dia 80mm
piston rod dia 40mm
|

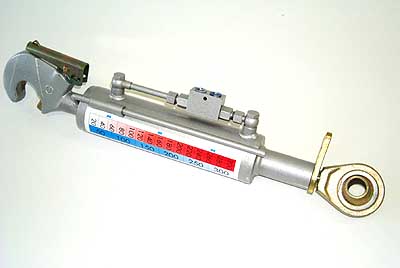

B8113
CAT. 3 BALL END + CAT. 3 QUICK HITCH CLAW OTHER END
other specs as B8112 (above)
|
|
SPARE PARTS
|
|
B8114
|
Seal Repair Kit Suit B8111 Top Link
|
|
B8115
|
Seal Repair Kit Suit B8112/B8113 Top Link
|
|
B8116
|
Replacement Check Valve Assy
|
|
B8118
|
Threaded Cat. 3 Ball End to suit B8112/B8113
Top Link
|
|
B8119
|
Piston Rod Only to suit B8111 Top Link
|
|
B8120
|
Piston to suit B8111 Top Link
|
|
B8121
|
Piston Rod Only to suit B8112 Top Link
|
|
B8122
|
Piston to suit B8112 Top Link
|
|
|
