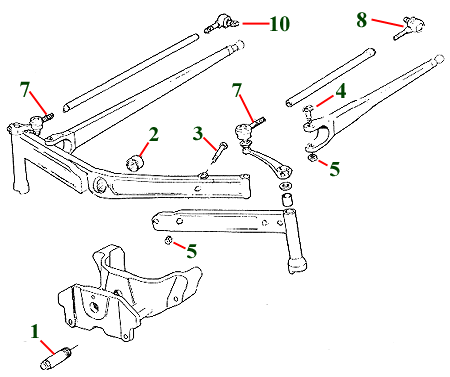

RADIUS ROD FRONT AXLE MODELS
MANUAL AND POWER STEERING
(MODELS LESS CAB)
|
Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B3866
|
C5NN3127B
1812461
|
Pivot Pin 45mm dia
|
2000-3000 up to
7/1970
|
|
B3867
|
C7NN3127D
1822711
|
Pivot Pin 51mm dia
|
2000-3000 from
8/1970
2600-3600-4100-2610
3610-3910-4110
|
|
2
|
B3870
|
C5NN3153C
|
Pivot Bush 45mm ID
|
2000-3000 up to
7/1970
|
|
B3871
|
C7NN3153B
1822712
|
Pivot Bush 51mm ID
|
2000-3000 from
8-1970
2600-3600-4100-2610
3610-3910-4110
|
|
3
|
B2153
|
|
Axle Beam Bolt
|
Dexta-Super Dexta
2000-3000-2600-3600
4100-2610-3610-3910-4110
|
|
4
|
B2152
|
957E3415A
|
Radius Rod Bolt
|
|
5
|
B2154
|
379223S43
|
Nut
|
|
6
|
B3302
|
C5NN3N303A|
1802878
|
Universal Tie Rod End Boot
|
|
7
|
B2794
|
957E3290B
1802867
|
Front Ball Joint
( 2 required )
|
All Above-Manual Steer
|
|
B1343
|
C5NN3A300B
1802873
|
All Above-Power Steer
|
|
8
|
B2795
|
957E3307B
1717427
|
L.H. Rear Ball Joint
|
All Above-Manual Steer
|
|
9
|
B1337
|
C5NN3308E
1802895
|
R.H. Rear 1/2 Drag Link
|
All Above-Power Steer
Less Cabin
|
|
10
|
B2795
|
957E3307B
1717427
|
R.H. Rear Ball Joint
|
All Above-Manual Steer
|
|
11
|
B1338
|
C5NN3307G
1802891
|
L.H. Rear 1/2 Drag Link
|
All Above-Power Steer
Less Cabin
|
|
12
|
B1344
|
C5NN3A302B
1802877
|
Ball Joint
Power Steer Ram
|
All Above Models with Power Steering
(2600-3600-4600-4610 equipped with
cylinders with female threads)
|
|
13
|
B1339
|
3936565
3936566
|
Universal P/S Ram Fits L.H. or R.H.
(ball joint NOT incl.)
|
|
14
|
B1340
|
CAPN3301B
1810562
|
Seal Kit for Original Ram
|
|
B1341
|
|
Seal Kit for BARE-Co
B1339 Ram
|
|
|
