REAR
HYDRAULICS & PTO

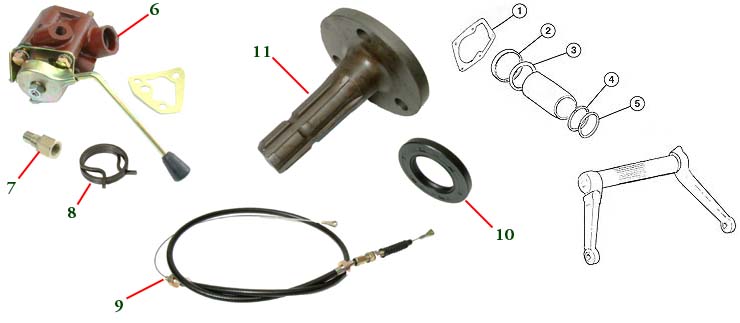

NOTE: Parts shown are BARE-Co
parts - original part numbers are shown for reference only.
|
REF
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B1012
|
574923
|
GASKET
|
540, 640, 450, 550, 650, 480,
500, 600
|
|
2
|
B1013
|
5105664
|
BACK UP RING
|
540, 450, 480, 500,
|
|
B1014
|
4999412
|
640, 550, 650, 580, 680, 780,
880, 880/5, 980
|
|
3
|
B1015
|
14472680
|
"O" RING
|
540, 450, 480, 500
|
|
B1016
|
14472880
|
640, 550, 650, 580, 680, 780,
880, 880/5, 980
|
|
4
|
B1017
|
14472180
|
"O" RING
|
540, 450, 480, 500
|
|
B1018
|
14472380
|
640, 550, 650, 580, 680, 780,
880, 880/5, 980
|
|
5
|
B1019
|
5106299
|
BACK UP RING
|
540, 450, 480, 500
|
|
B1020
|
5106297
|
640, 550, 650, 580, 680, 780,
880, 880/5, 980
|
|
6
|
B911
|
588771
|
DIVERTER VALVE ASSEMBLY
|
411R, 415,
540, 640, 450, 550, 650, 750, 480, 500, 600 |
|
7
|
B9024
|
576233
|
DOUBLE ACTING ADAPTOR
for above valve
|
|
8
|
B912
|
588779
|
REPLACEMENT SPRING
to suit above
|
|
9
|
B2860
|
4999388
|
HYDRAULIC CABLE (4 required)
|
580, 680, 780, 880, 880/5,
980 |
|
B2859
|
5139172
|
HYDRAULIC CABLE
|
55-88, 60-88, 65-88,
70-88, 80-88,
55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 95-90,100-90, 110-90,
60-93, 65-93, 72-93, 82-93,
60-94, 65-94, 72-94, 82-94, 88-94
L60, L65, L75, L85, L95 |
|
10
|
B987
|
5107905
|
PTO SHAFT OIL SEAL
|
450, 480, 500, 540, 550,
600, 640 |
|
11
|
B2861
|
4983660
|
PTO SHAFT
1 3/8" x 6 splines
|
650, 750,
566, 666, 766,1000, 1300,
580, 680, 780, 880, 880/5, 980, 1180, 1380, 1580, 1880,
45-66, 55-66, 60-66, 70-66, 80-66,
55-90, 60-90, 70-90, 80-90, 90-90, 100-90, 115-90, 130-90, 140-90,
160-90, 180-90 |
|
B7032
|
5140119
|
PTO SHAFT
1 3/8" x 21 splines
|
|
|
