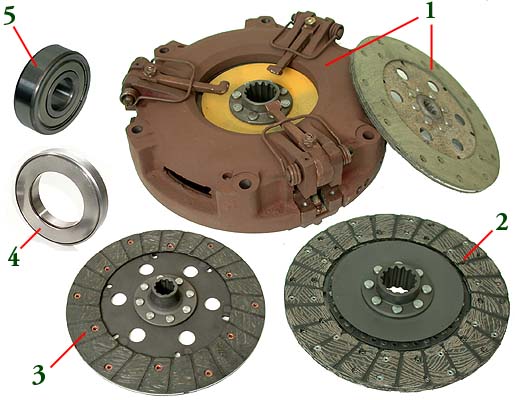

250mm
(10") CLUTCH
NOTE: Parts shown are BARE-Co parts
- original part numbers are shown for reference only.
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B6864
|
5110245
|
CLUTCH ASSEMBLY (12mm bolt holes)
- includes both clutch plates
|
450, 450R, 480,
500, 540
with 3 finger 10" clutch
|
|
B7864
|
|
UPGRADE CLUTCH ASSEMBLY
- includes both clutch plates
Very early tractors with 10mm bolts - enlarge flywheel holes for
12mm bolt
|
|
2
|
B2870
|
4968734
|
MAIN CLUTCH PLATE - RIGID CENTRE
(replaces sprung hub 254 x 40mm x 14 splines)
|
|
3
|
B2863
|
4968736
|
PTO CLUTCH PLATE
250 x 25mm x 10 splines
|
|
4
|
B2876
|
5103178
|
THRUST BEARING
|
|
5
|
B7179
|
28040050
|
FLYWHEEL PILOT BEARING
|
|
|
